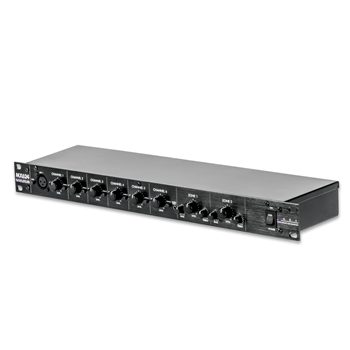

ART MX624 Rackmount 6-Channel Stereo Mixer With Two Zone Outputs

Features:
The MX624 Mixer from ART is a 6-channel mixer with two zone outputs, well suited for a wide range of applications including stage, studio, and permanent installs such as for conference rooms, corporate boardrooms, churches, restaurants, small clubs, health clubs and more. The mixer features 6 stereo RCA inputs with 3 XLR microphone inputs on channels 1-3. Each mic input includes individual +48V phantom power and pad selections, while mic input 1 features a ducking option that attenuates the other channels when engaged. Other inputs include a 1/8" TRS jack for portable music players, as well as a two stereo bus inputs for daisy chaining other mixers. Each channel offers Zone 1 and Zone 2 selections buttons, which route the signal to their respective stereo outputs, while the front panel offers a level control as well as bass and treble tone controls for each output. The MX624 is housed in a 1RU steel chassis with internal power supply and ships with a power cord.

Six stereo input channels with individual level controls using RCA phono jacks

Balanced mono microphone XLRs also available on the first three channels

Selectable padding on microphone inputs

Full +48V low-noise phantom power independently switchable for each mic input

First channel's mic input provides switchable ducking of other channels with selectable parameters

Front panel 1/8-inch stereo (TRS) mini-phone plug for portable music player input

Two sets of left and right 1/4-inch mono (TS) main output jacks with master level, bass and treble controls

Two bus input 1/4-inch mono (TRS) jacks allow units to be chained to provide extra inputs

Rugged 1U rack-mount steel chassis with built-in power supply

For stage, studio and permanent installations

Table of Contents:

Catalog:	MX624
Publisher:	ART
